DESCRIPTION
Designed for trench deployment, this version features a built-in 60Ah battery and a weather-resistant housing, ensuring reliable operation in harsh field conditions.
Capable of operating continuously for up to 120 minutes under full load.
The device is actively cooled with a built-in fan to maintain stable performance.
Do not activate the jammer near a drone carrying explosives.
NEW frequencies: 2100-2700 MHz
ALL DEVICE SPECIFICATIONS:
- Description MULTI-CHANNEL PORTABLE DEVICE AGAINST VARIOUS UAV TYPES FOR THE PROTECTION OF PERSONNEL AND/OR POSITIONS, VEHICLES
-
Frequency Range #1
2100-2300 MHz
100W, Dome -
Frequency Range #2
2300-2500 MHz
100W, Dome -
Frequency Range #3
2500-2700 MHz
100W, Dome - Total Output Power 300W

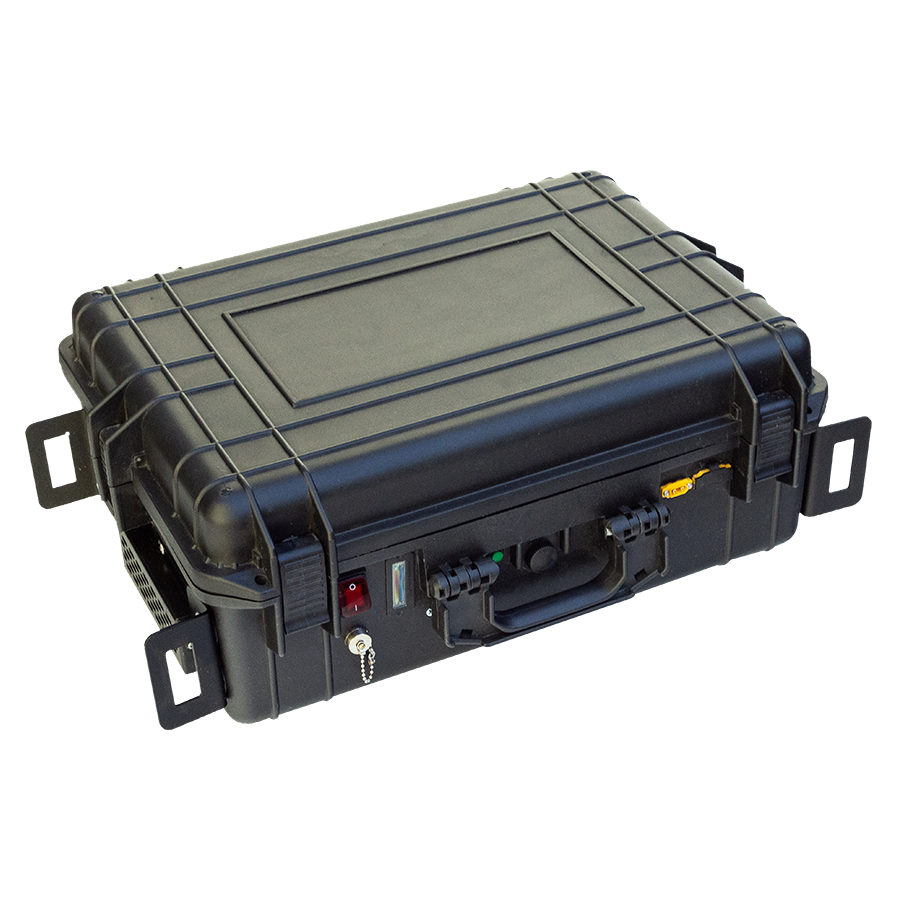

- Form Factor Portable Case with Antennas
- Designed For Personnel & Position Protection

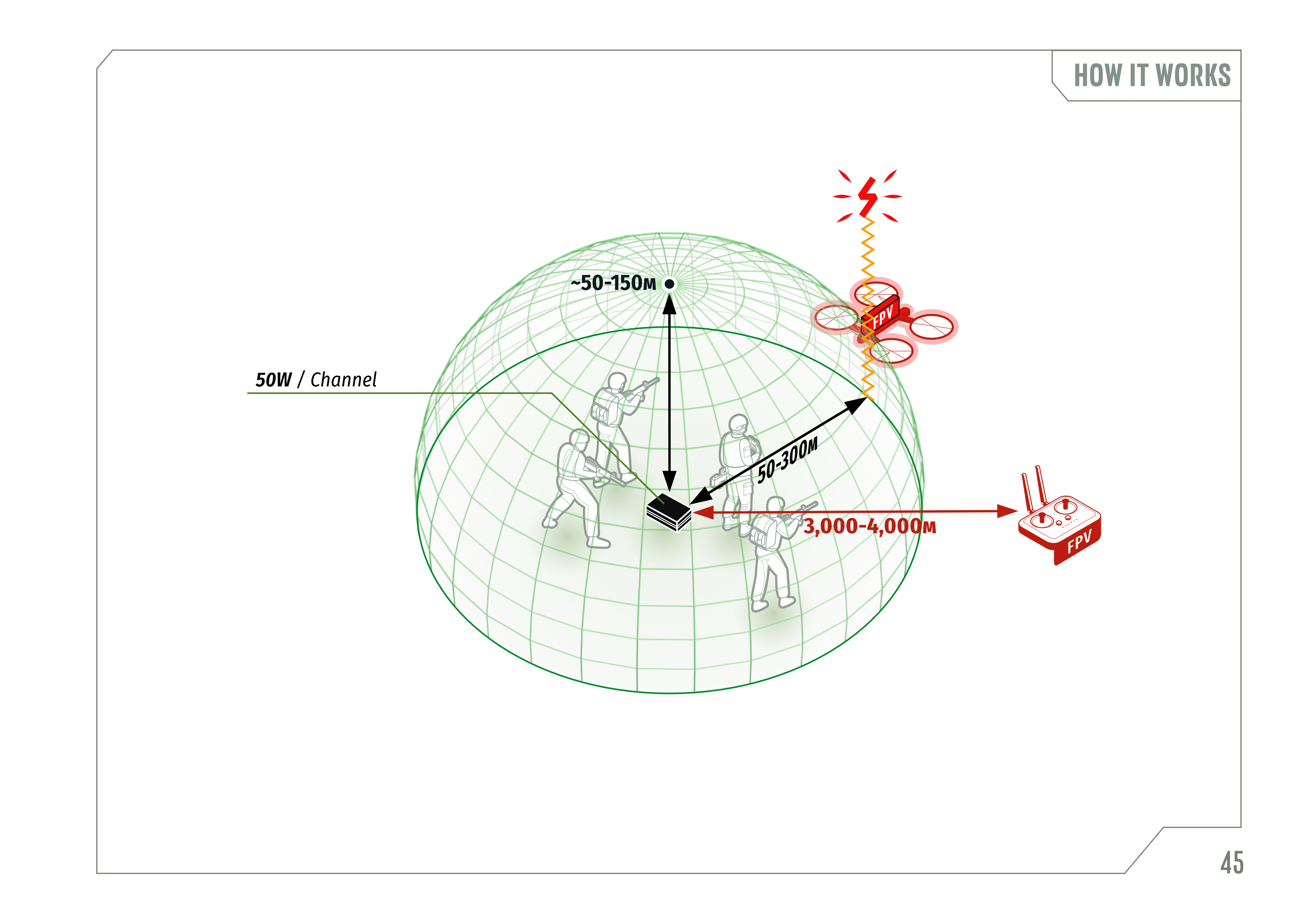

- Area of Effect See technical diagram
- Mains Power Supply -
-
Battery Power Supply
• Built-in 60 Ah Battery
• Input for External Battery - Autonomy ~120 min. at 18°С
- Cooling Active
- Casing Plastic
- Protection Rating IP51
- Weight ~17 Kg
- Dimensions 650 х 500 х 264 mm
-
Delivery Package
• BMX300-6 MSD
• Remote w/Cable
• 220 V charger
• Charger
OPERATING PRINCIPLE
This text section is work in progress...
BMX300-3 MSD
DEVICE AGAINST FPV .2300 .2500 .2700
[ Network operating ranges: ]
- 2100-2300
- 2300-2500
- 2500-2700
Do not activate the jammer near a drone carrying explosives.
NEW frequencies: 2100-2700 MHz
