DESCRIPTION
Multi-frequency signal amplifier against various types of UAVs for installation on a car under standard car roof mounts.
The frequency ranges 2395-2490 MHz and 5145-5255 MHz have two modules each to cover vertical and horizontal polarization (in the characteristics this is indicated by the signs H and V, for example 5145-5255H MHz).
We can supply roof rails for your car if you specify the model, and year of your car when ordering.
ALL DEVICE SPECIFICATIONS:
-
Frequencies
320-420 MHz, 50 W;
420-520 MHz, 50 W;
520-620 MHz, 50 W;
620-720 MHz, 50 W;
720-850 MHz, 50 W;
850-950 MHz, 50 W;
950-1050 MHz, 50 W;
2100-2300 MHz, 50 W;
2300-2500 MHz, 50 W;
2500-2700 MHz, 50 W;
2395-2490H MHz, 50 W;
2395-2490V MHz, 50 W;
5145-5255H MHz, 50 W;
5145-5255V MHz, 50 W;
- Total Output Power 3200 W
- Form Factor Roof-mounted vehicle cargo box
- Made for Cars

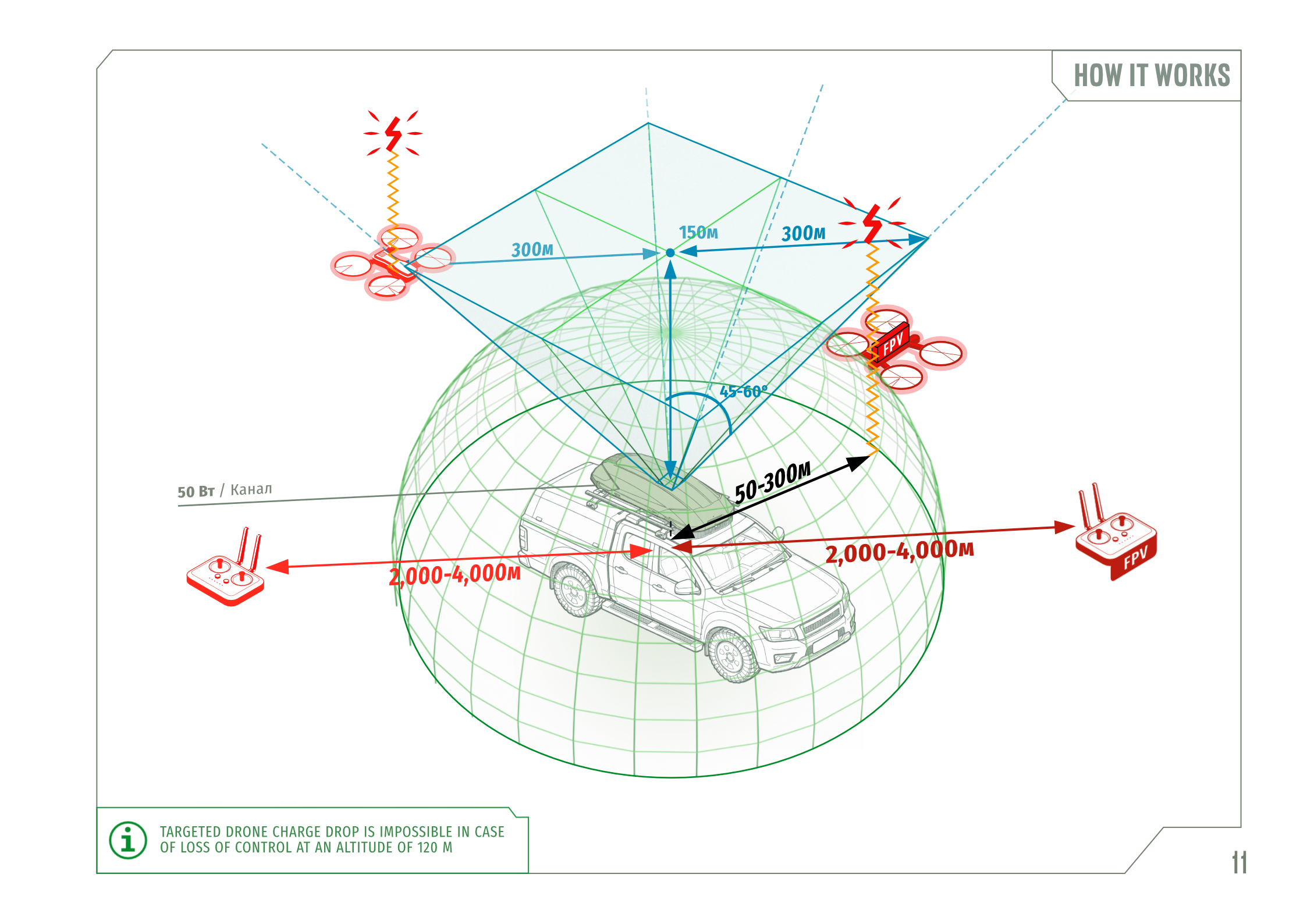

- Area of Effect See technical diagram
- Power Supply External power supply required; Battery: 28 V (Li-ion, Li-Fe)
- Cooling Active
- Mounting Type Roof rails
- Casing Material Composite
- Weight Up to 100 kg
- Dimensions 215 x 90 x 45 mm
-
Special Features
Individual DC-DC converter for each module
Ensures efficient operation at varying battery charge levels
CVN CHOVEN-2
14 BANDS OF EW PROTECTION MOUNTED TO A CAR ROOF, FROM 320 MHz TO 5255 MHz
[ Network operating ranges: ]
- 320-420
- 420-520
- 520-620
- 620-720
- 720-850
- 850-950
- 950-1050
- 2100-2300
- 2300-2500
- 2500-2700
- 2395-2490
- 5145-5255
We can supply roof rails for your car if you specify the model, and year of your car when ordering.
