DESCRIPTION

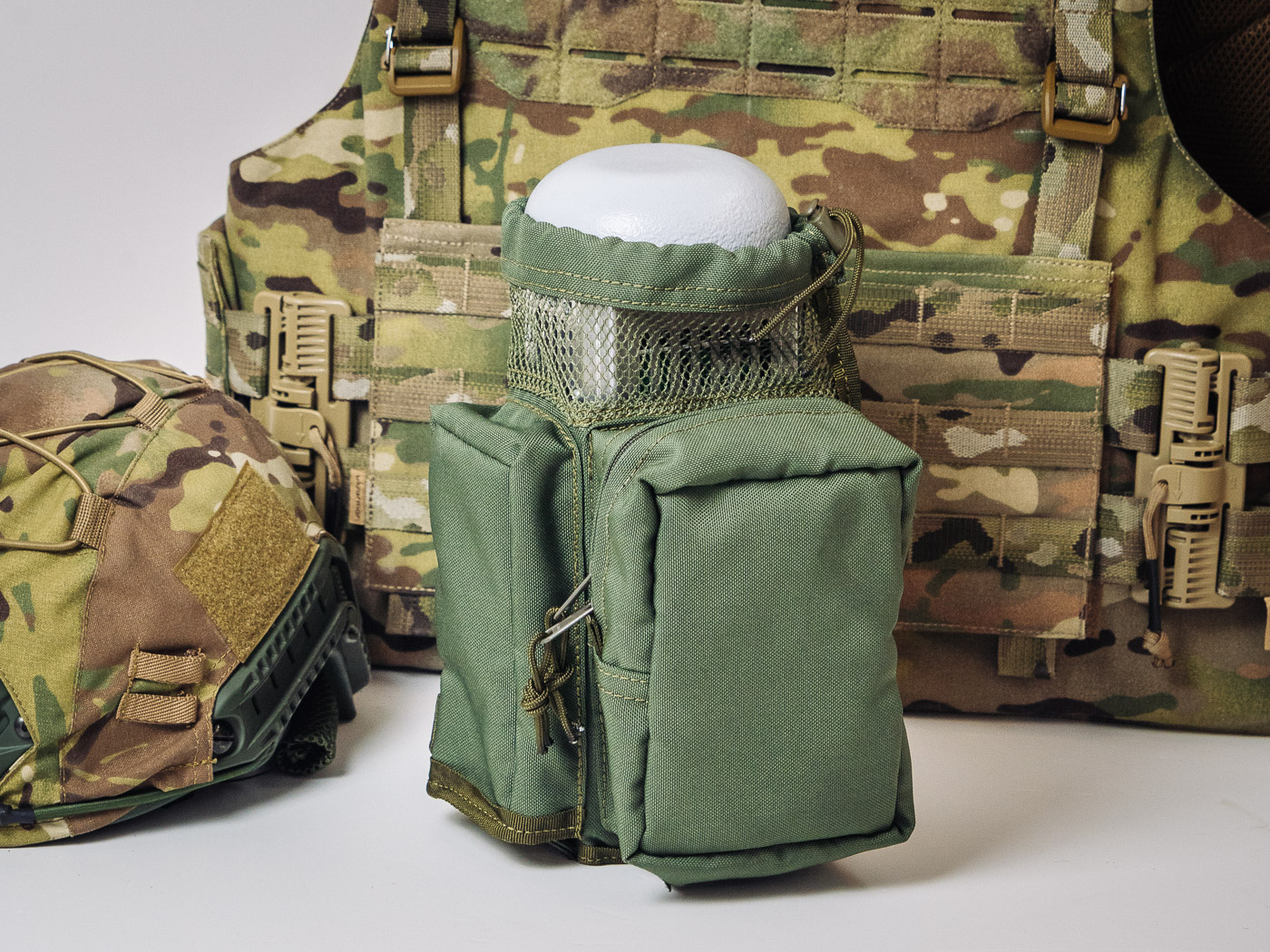

Lightweight Portable Version in “Pouch” Configuration
A compact single-channel unit designed for use by assault teams in field conditions. Available in various frequency configurations (only one module per device): 2400-2484 MHz, DJI, 5725-5850 MHz, DJI, Autel.

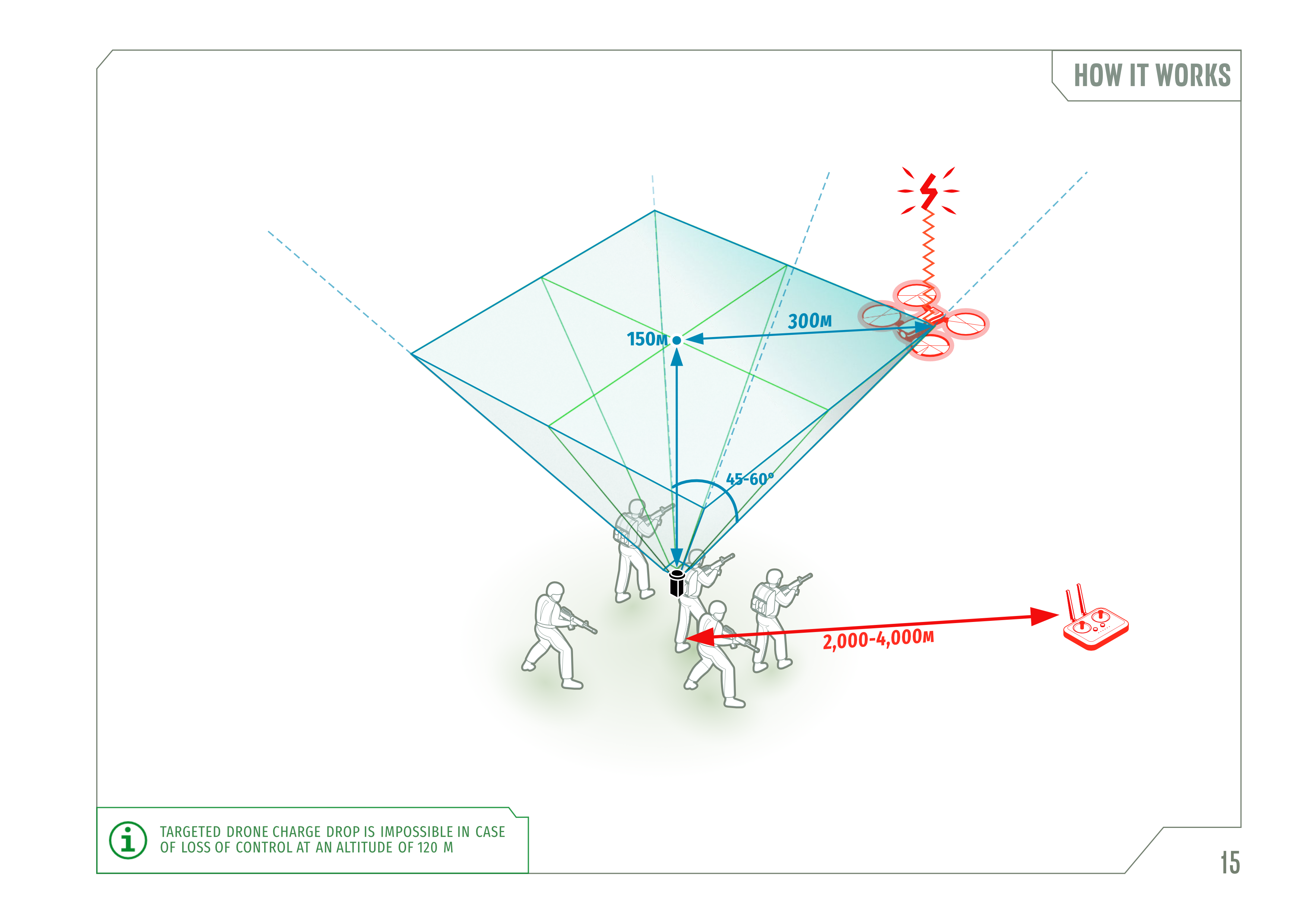

Each module operates at 50W, providing effective operational range as shown in the gallery (see diagram). Equipped with a convenient external activation button for quick use. Supplied with a removable battery pack (specifications: 24V, 6Ah), providing approximately 90 minutes of continuous operation.
The battery can be replaced with any other 24–28V power source with a minimum current output of 5A.
EW cannot be turned on near a drone with ammunition!
New: the device has a built-in DC-DC converter
ALL DEVICE SPECIFICATIONS:
- Description TWO-Channel Device AGAINST MAVIC, MATRICE AND SIMILAR DRONE TYPES FOR BACKPACK, FOR PERSONNEL PROTECTION
-
Frequency Range Option #1
2400-2484 MHz, DJI, Autel
50W, Sector -
Frequency Range Option #2
5725-5850 MHz, DJI, Autel
50W, Sector - Total Output Power 100W, Sector
- Form Factor a Small Bag for a Backpack
- Designed For Personnel Protection
- Area of Effect See technical diagram
- Mains Power Supply -
- Battery Power Supply Replaceable external Battery 6 Ah
- Autonomy ~60 min. at 18°С
- Cooling Active
- Casing Aluminum
- Protection Rating IP65
- Weight 4 Kg
- Dimensions 430 x 220 x 180 mm
-
Delivery Package
• SHATRO STR50-1B
• 6 Ah Battery
• Activation button with Cable
• Charger from the 220V network
• Bag - DC-DC converter yes, built-in
OPERATING PRINCIPLE
This text section is work in progress...
Malyuk 2400+5800
TWO-CHANNEL DEVICE AGAINST MAVIC, MATRICE AND SIMILAR DRONE TYPES
[ Network operating ranges: ]
- 2400-2484
- 5725-5850
EW cannot be turned on near a drone with ammunition!
New: the device has a built-in DC-DC converter
