DESCRIPTION

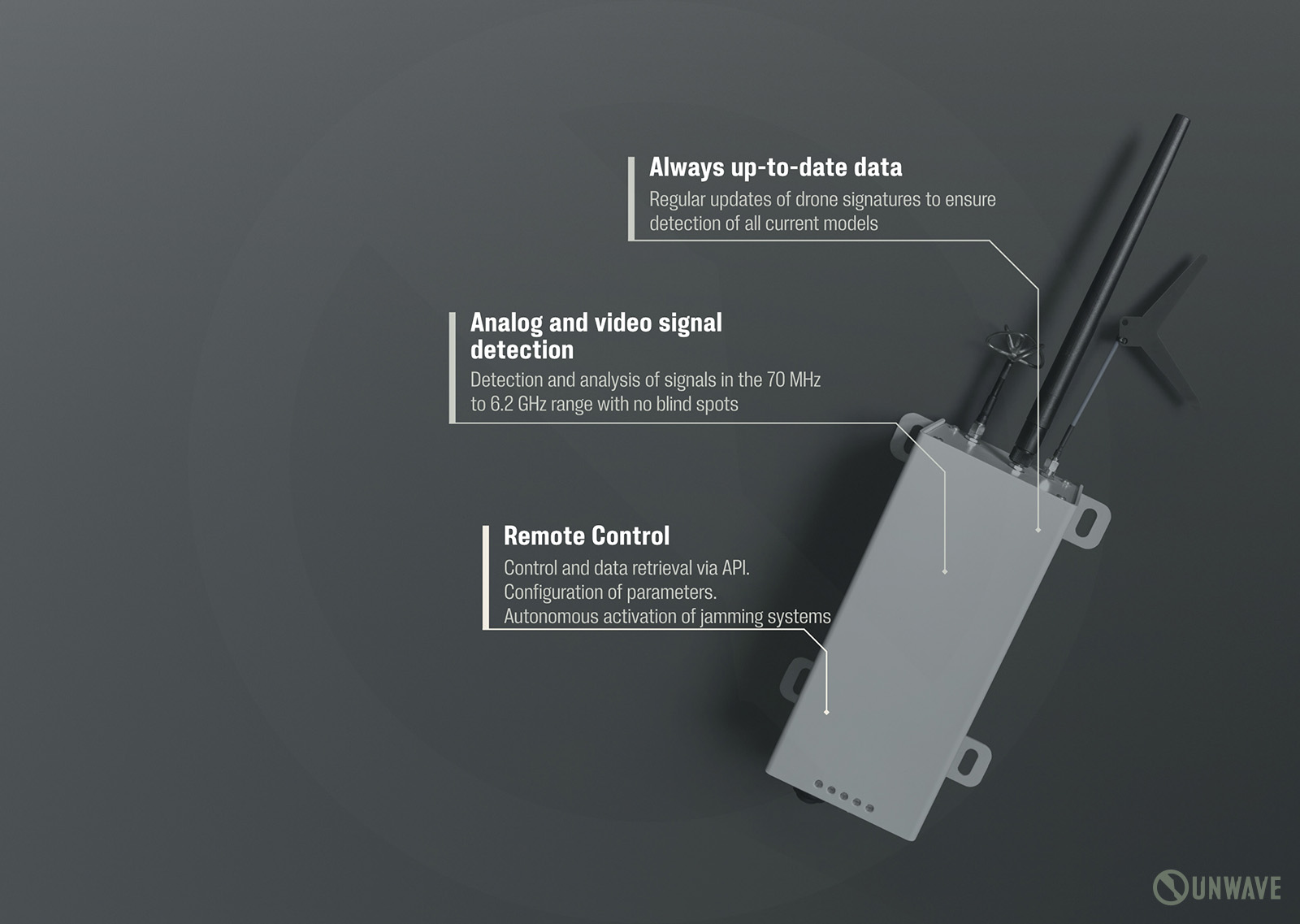

“Bashur” is a new solution from the Ukrainian company Unwave, created to automate protection against drones.
The complex for detecting and analyzing digital and analog video signals of UAVs:
- Identifies video streams
- Transmits analysis results to the command software
- Can automatically activate radio suppression means
- Supports control both via the remote control and remotely
Its advantages:
- Detection of analog and digital video signals
- Video signal transmission
- Remote control
- Automatic or manual control
Device startup time up to 2 minutes
NEW!
ALL DEVICE SPECIFICATIONS:
- Main purpose UAV video signal detection
-
Functionality
• UAV type detection and recognition using data analysis
• Broadcasting of intercepted analog video channel to the remote control
• Online broadcast via additional servers or services
• Information transmission via API
• Control of connected suppression devices -
Detected drones
• FPV with analog video
• FPV with digital video (FPV Walksnail, FPV DJI O3 and 04)
• DJI Mavic 3 Classic
• Autel 2, Autel 4 - Detection range 70 MHz – 6 GHz
- Power supply DC 9–30 V, max. 20 W
- Cooling 2 modifications: passive or active
-
Dimensions & weight
passive: 215 × 135 × 85 mm, ~2 kg
active: 260 × 180 × 100 mm, ~4 kg - Operating temperature -10 °C to +35 °C
- Startup time Up to 2 minutes
Bashur
UAV VIDEO SIGNALS DETECTION AND ANALYSIS COMPLEX
[ Network operating ranges: ]
- 70 MHz - 6 GHz
Device startup time up to 2 minutes
NEW!
