DESCRIPTION

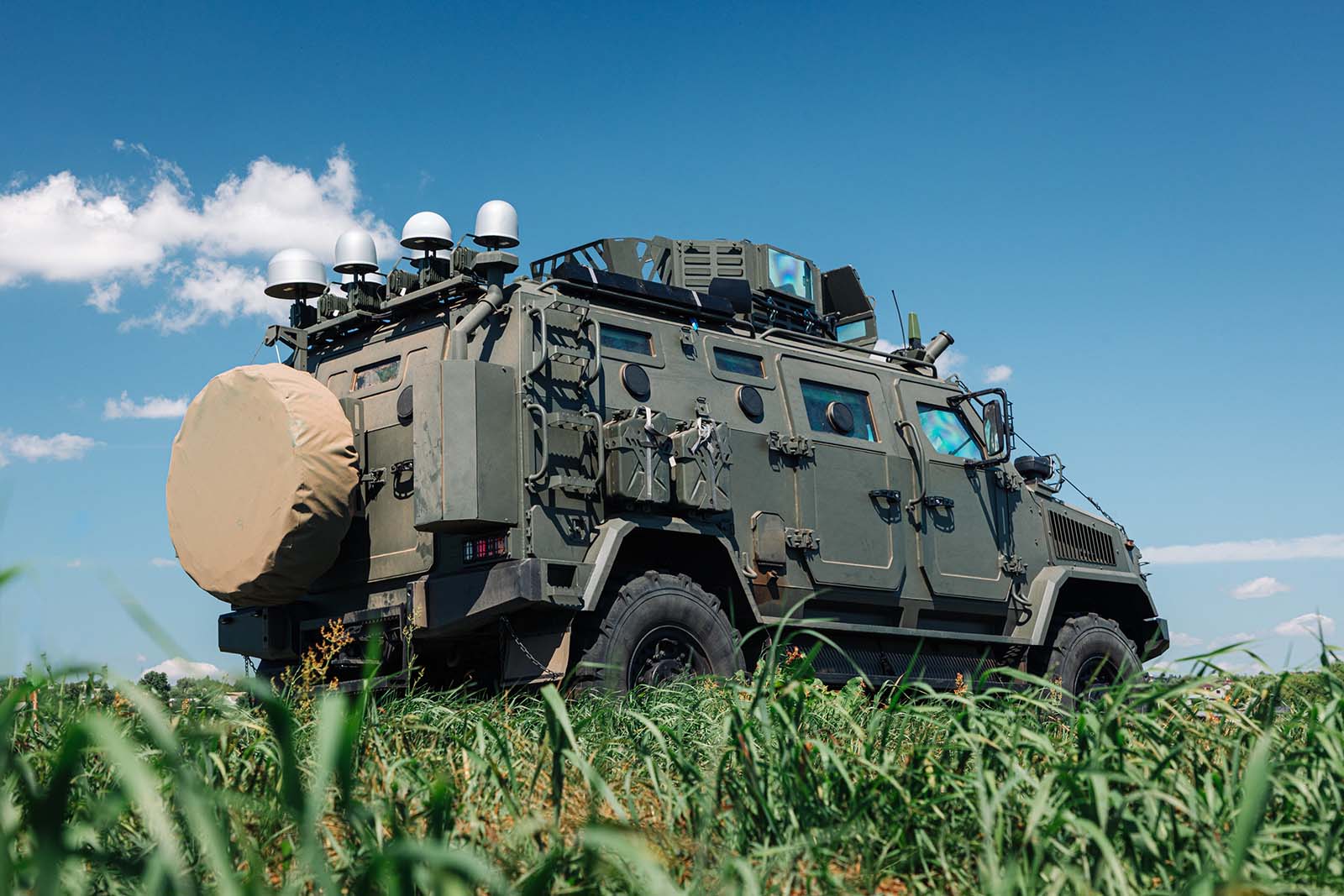

Ready-made kit for installation on armored vehicles, pickup trucks and other vehicles.

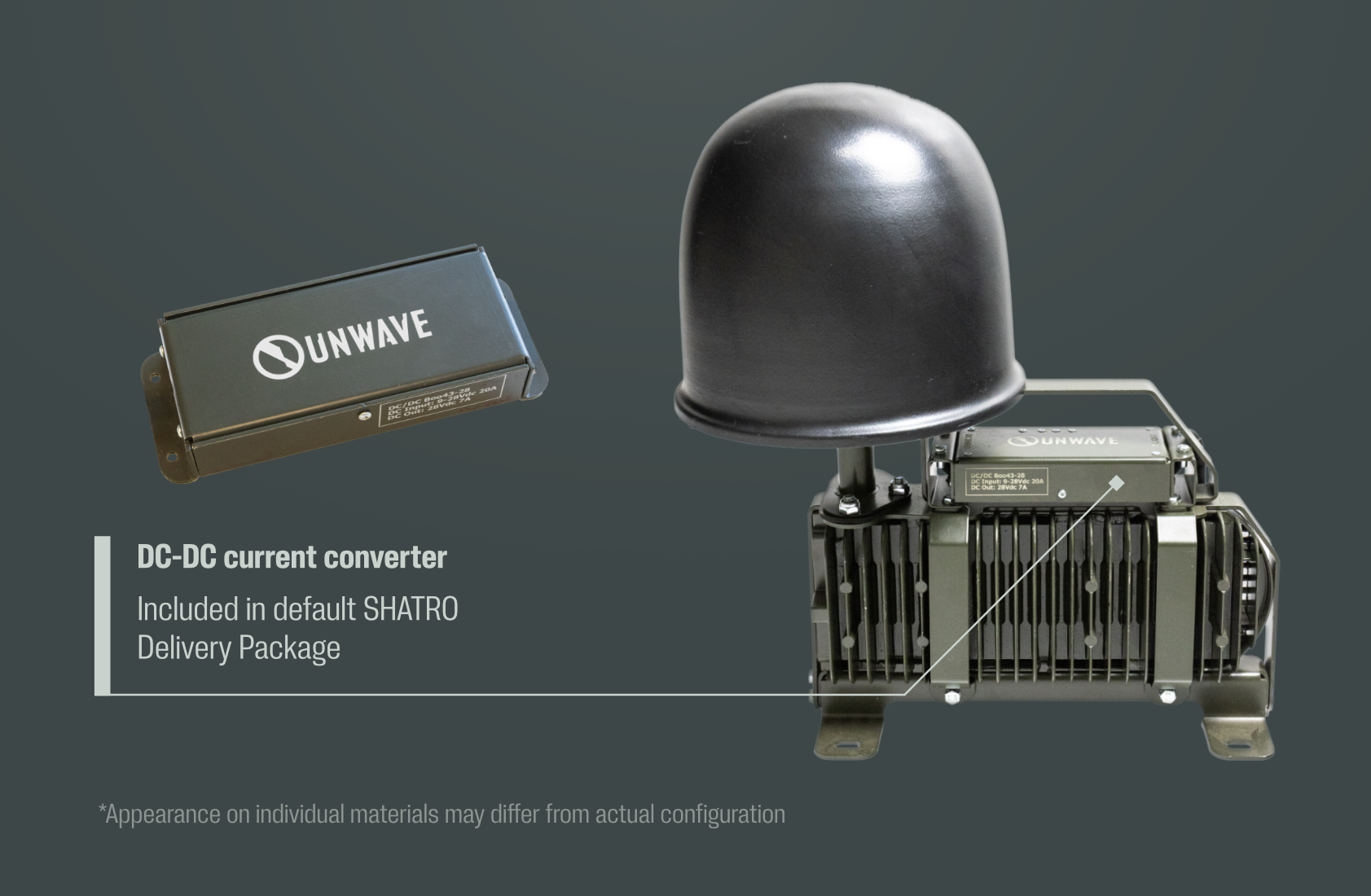

Consists of a frame for 6 or 9 seats, “Shatro” products, a battery, a switching kit, a charger. Optionally, a DC-DC current converter can be installed.
WARNING! Do not activate EW near a drone carrying ammunition!
ALL DEVICE SPECIFICATIONS:
- Description Anti-FPV installation for mounting on equipment
- Frequency Range All available Shatro product ranges (from 220 MHz to 5.8 GHz)
- Total Output Power up to 550 W
- Form Factor Installation for installation
- Designed For Mobile platforms / Vehicles

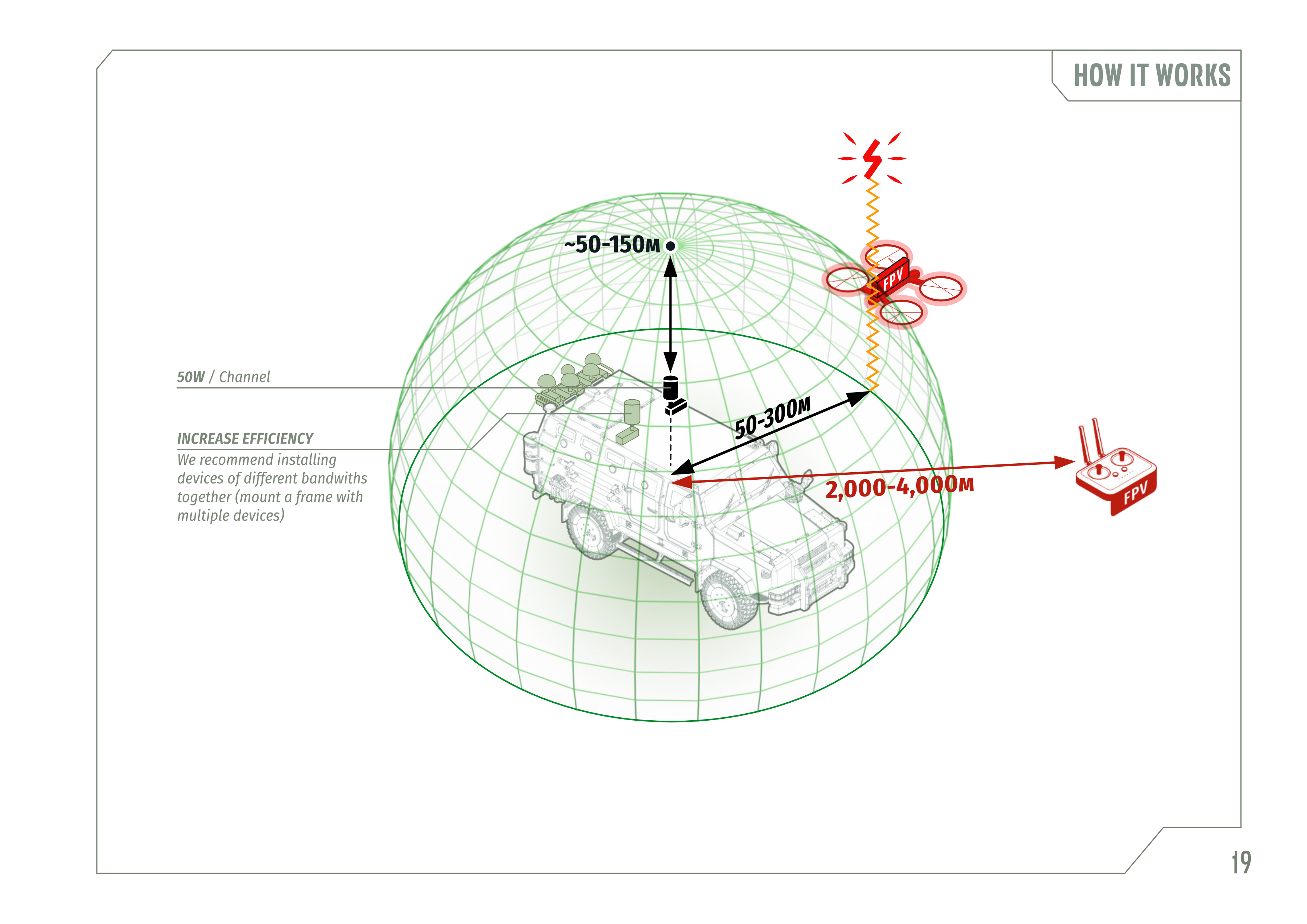

- Area of Effect See technical diagram
- Mains Power Supply Depending on the configuration
- Battery Power Supply Depending on the configuration
- Cooling Passive
- Casing Metal
- Protection Rating IP64
- Weight Depending on the configuration
- Dimensions Depending on the configuration
- Delivery Package Depending on the configuration

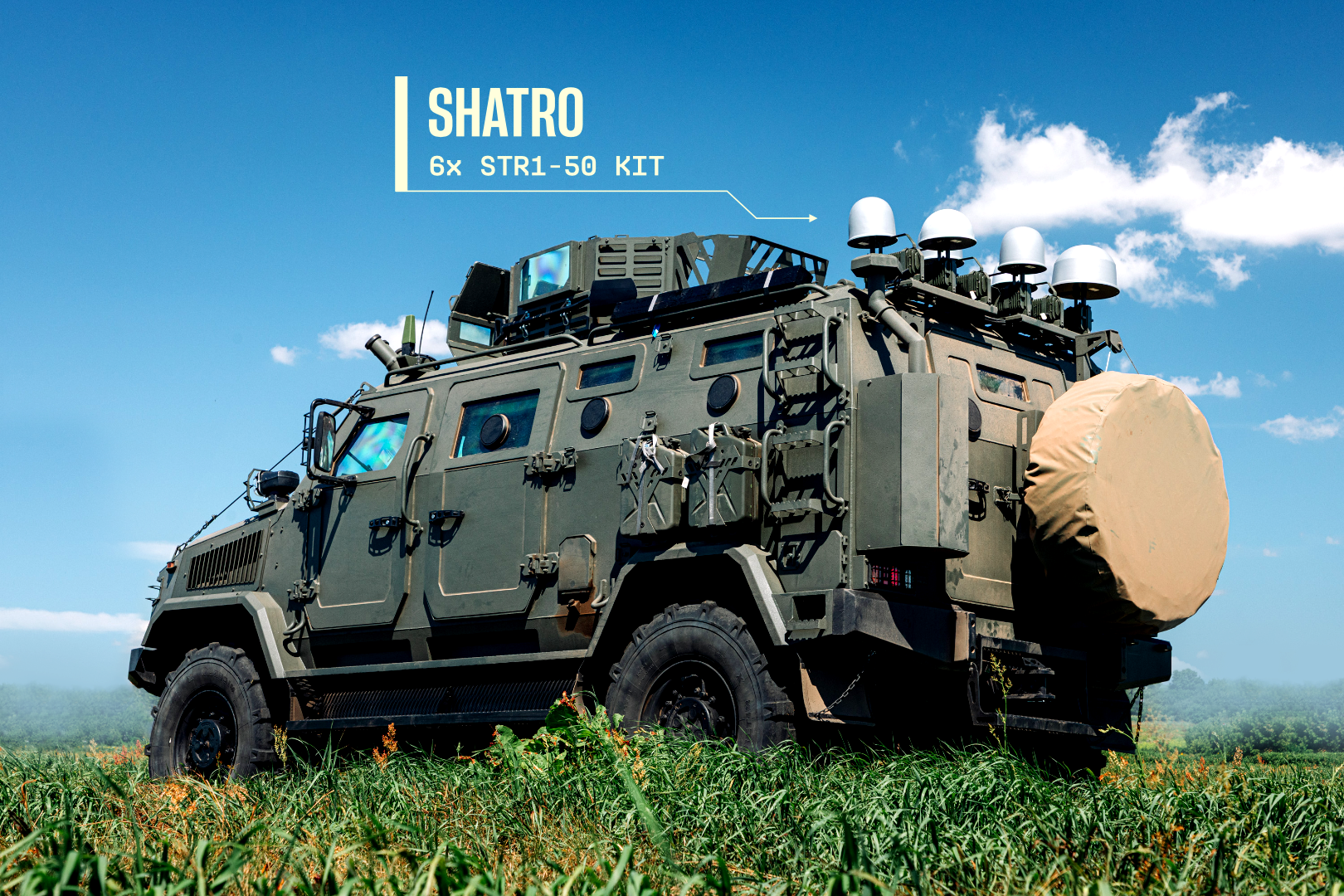

STR50-1 kit on frame
READY-TO-USE KIT BASED ON STR50-1, UP TO 9 DEVICES ON A FRAME
[ Network operating ranges: ]
- 220-320
- 320-420
- 420-520
- 520-620
- 620-720
- 720-850
- 850-950
- 950-1070
- 2100-2500
- 5150-5300
- 5725-5850
WARNING! Do not activate EW near a drone carrying ammunition!
